PVCEXCON
Standard conveyor
SKU
PVCEXCON
PVCEXCON belts are made with FDA compliant materials and are suitable for food conveying according to EU regulations.
F Series also includes belts with blue cover as BL. The F10/AB is antibacterial cover, with HACCP approval.
E Series is food and ATEX approved.
Good resistance to oil, fats, vegetables; resistant to water.
Suitable for curved conveyors and for steep transport. PVCEXCON.
Working temperature
-10°C / +70°C

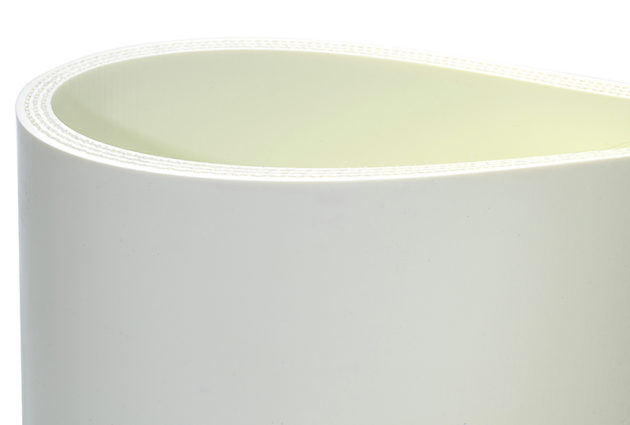

White 75 Shore A food and ATEX approved PVC belts. Belts are antistatic and flame retardant per DIN & ISO norms and are suitable for use in most environments with risk of explosion. Suitable for all phases of sugar processing and as a bucket elevator in flour mills, citrus processing and preservatives industry.
| Sampla REF | Article NO | Description | Product PDF |
|---|---|---|---|
| E21/20.10/ATEX | KB2WH5001 | PVCEXCON | 2F/16 W50 V08/V20 AS AR FA FR ATEX | Download |
| E31/20.10/ATEX | KB3WH6001 | PVCEXCON | 3F/24 W60 V07/V20 AS AR FA FR ATEX | Download |
| E31/25.14/ATEX | KB3WH7401 | PVCEXCON | 3F/24 W74 V14/V25 AS AR FA FR ATEX | Download |
| E31/30.13/ATEX | KB3WH9501 | PVCEXCON | 3F/75 W95 V13/V30 AS AR FA FR ATEX | Download |
| E21/10.10/VR/ATEX | KB2PG4101 | PVCEXCON | 2F/16 PG41 V10/V10 AS AR FA FR ATEX | Download |
| E31/20.07/VR/ATEX | KB3PG6201 | PVCEXCON | 3F/24 PG62 V07/V20 AS AR FA FR ATEX | Download |
| E41/20.08/VR/ATEX | KB4PG7401 | PVCEXCON | 4F/30 PG74 V08/V20 AS AR FA FR ATEX | Download |
| E41/20.08/ATEX | KB4WH7401 | PVCEXCON | 4F/30 W74 V08/V20 AS AR FA FR ATEX | Download |

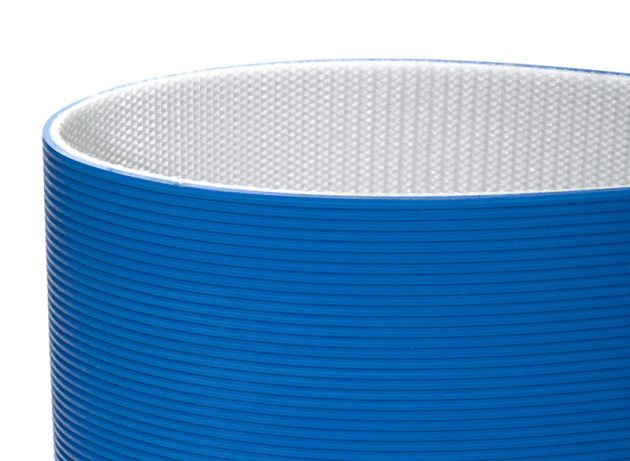

Food grade PVC belts. Good resistance to animal fats, vegetables, and mineral oils. These belts are suitable for conveying food as per FDA and European regulations. Type F10/AB has an antibacterial cover and supports HACCP requirements. Double cover belts are used in agriculture as well as food processing industries. Types with flexible weft such as F21 are suitable for power turn or curve conveyors. Type F21/K is embossed with an original pattern studied specifically for inclined conveying of bulk products. Type F61/10.5 is also used as an elevator belt for fat and oily products where there is no risk of explosion.
| Sampla REF | Article NO | Description | Product PDF |
|---|---|---|---|
| F20/LG/BL | KB2DB3004 | PVCEXCON | 2R/12 DB30 U0/LG FA | Download |
| F6 | KB1WH1201 | PVCEXCON | 1LR/5 W12 U0/V07 FA | Download |
| F20/06.06/Z | KB2WH3003 | PVCEXCON | 2R/12 W30 Z/V06 FA | Download |
| F10 | KB2WH2003 | PVCEXCON | 2LR/8 W20 U0/V05 FA | Download |
| F21/05.05/Z | KB2WH3001 | PVCEXCON | 2F/13 W30 Z/V05 FA | Download |
| F10/AB | KB2DB2002 | PVCEXCON | 2LR/8 DB20 U0/V05 FA AB | Download |
| F21/10.05/Z | KB2WH3601 | PVCEXCON | 2F/13 W36 Z/V10 FA | Download |
| F10/BL | KB2DB2001 | PVCEXCON | 2LR/8 DB20 U0/V05 FA | Download |
| F21/Z/T/BL | KB2DB5701 | PVCEXCON | 2F/15 DB57 Z/T FA | Download |
| F10/Z | KB2WH2301 | PVCEXCON | 2LR/8 W23 U0/Z FA | Download |
| F31/08.09/Z | KB3WH4501 | PVCEXCON | 3F/14 W45 Z/V09 FA | Download |
| F10/09.0 | KB2WH2402 | PVCEXCON | 2LR/8 W24 U0/V09 FA | Download |
| F10/09.0/BL | KB2DB2402 | PVCEXCON | 2LR/8 DB24 U0/V09 FA | Download |
| F61/10.05 | KB2WH4601 | PVCEXCON | 2F/45 W46 V05/V10 FA | Download |
| F20 | KB2WH2604 | PVCEXCON | 2R/12 W26 U0/V08 FA | Download |
| F41/06.10 | KB3WH5301 | PVCEXCON | 3F/24 W53 V06/V10 AS FA | Download |
| F21 | KB2WH2601 | PVCEXCON | 2F/12 W26 U0/V08 FA | Download |
| F20/T | KB2WH5002 | PVCEXCON | 2R/12 W50 U0/T FA | Download |
| F21/BL | KB2DB2602 | PVCEXCON | 2F/12 DB26 U0/V08 FA | Download |
| F20/M | KB2WH5701 | PVCEXCON | 2R/12 W57 U0/M FA | Download |
| F10/09.0/RV | KB2WH2702 | PVCEXCON | 2LR/8 W27 U0/RV FA | Download |
| F21/K | KB2WH8001 | PVCEXCON | 2F/12 W80 U0/K FA | Download |
| F21/12.0 | KB2WH3002 | PVCEXCON | 2F/12 W30 U0/V12 FA | Download |
| F30 | KB3WH3801 | PVCEXCON | 3R/16 W38 U0/V08 FA | Download |
| F31 | KB3WH3803 | PVCEXCON | 3F/14 W38 U0/V08 FA | Download |
| F20/06.06/BL/Z | KB2DB3001 | PVCEXCON | 2R/12 DB30 Z/V06 FA | Download |
| F21/05.05/BL/Z | KB2DB3003 | PVCEXCON | 2F/13 DB30 Z/V05 FA | Download |
| F20/BW/BL | KB2DB2301 | PVCEXCON | 2R/12 DB23 U0/BW FA | Download |
